LAU-131/A

7-Round Launcher

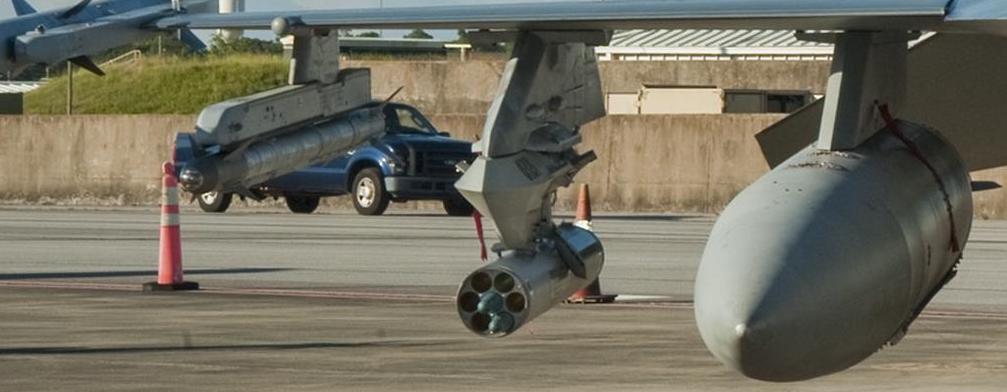

The LAU-131/A is a 7-round rocket launcher, primarily used by the U.S. Air Force. Having firing connectors on both the front and rear of the launcher, the LAU-131/A can be utilized on a number of different platforms, from fixed wing to rotary aircrafts. This feature can also be found on the ADE-131 A/A, an extended length launcher capable of firing APKWS II. Note: The LAU Series launchers require the use of an Intervalometer.

Rounds

7-Round

Fixed-Wing-Aircraft

Fixed Wing Aircraft

Rotory-Aircraft-Only

Rotary Aircraft

LAU-131-MSH-1

Technical Specification

LENGTH

59.8" (152cm)

DIAMETER

10.125" (25.7cm)

WEIGHT (WHEN EMPTY)

65 Pounds (29.5kg)

CAPACITY

7 Rockets (2.75 inches/70mm)

NSN

1340-01-230-5317-H149
