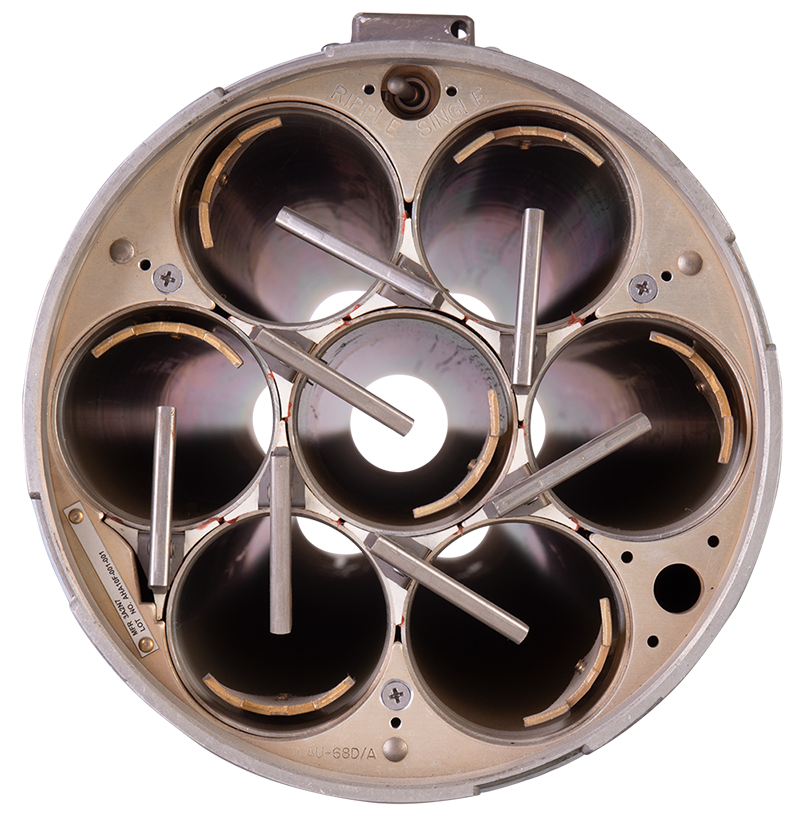

LAU-68 F/A

Extended Length Launcher

The LAU-68 F/A is primarily utilized by the U.S. Navy. Although it resembles the LAU-131 A/A, this launcher has a thermal coating that prolongs the cook-off time. Additionally, the LAU-68 F/A has one firing connector, unlike the two found on the LAU-131 A/A. This launcher often gets mistaken for the LAU-68 F/A, which can be distinguished by its thermal coating and lack of dual firing connections. Its length allows for the successful firing of APKWS II. Like the LAU-61 G/A, the LAU-68 F/A is only available through Foreign Military Sales.

Rounds

7-Round

Extended-Length

Extended Length

Fixed-Wing-Aircraft

Fixed Wing Aircraft

Rotory-Aircraft-Only

Rotary Aircraft

Requires-Fireing-System

Requires On-Board Firing System

LAU-68F-MSH

Technical Specification

Type

Extended Length Launcher

Length

71.1" (180.6cm)

Diameter

10.125" (25.7cm)

Weight Empty

92lbs (41.73kg)

Capacity

7 Rockets (2.75in/70mm)

NSN

1340-01-599-7001-HA94

LAU-68F-MSH_4431
